Brand Name : | Chengshun |
Model Number : | SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+Z |
Certification : | API、SNI、JIS、ISO9001 |
Defects such as pitting corrosion and scale that are common in hot
rolling do not exist in the production process because there is no
heating. Good surface quality and high finish. In addition,
cold-rolled products have high dimensional accuracy, and the
performance and structure of the product can meet special
application requirements such as electromagnetic performance and
deep drawing performance. Performance: Low carbon steel is mainly
used, which requires good cold bending welding performance and
certain stamping performance.
Cold-rolled steel coils have good performance, that is, through
cold rolling, cold-rolled steel strips and steel plates with
thinner thickness and higher precision can be obtained. Cold-rolled
steel coils have high flatness, high surface finish, smooth
surface, easy coating processing, and variety Wide range of
applications, high stamping performance, no aging, low yield point.
Therefore, cold-rolled thin coils are widely used, mainly in
industries such as automobiles, printing drums, construction,
building materials, and bicycles.
Our company is a professional galvanized steel coil manufacturer with ISO CE certificates and big factories of 50 000 tons per month productivity. We supply galvanized steel coils from zinc coat Z30 to Z275gsm, including hot dipped galvanized and electro-galvanized coils. Regular spangle, small spangle and zero spangle surface available.We have large stock for fast delivery and offer free sample and customization service. Main markets distributing in North America, South America, Africa, Southeast Asia as well as Oceania, our company built stable cooperation with customers from more than 100 countries and regions.

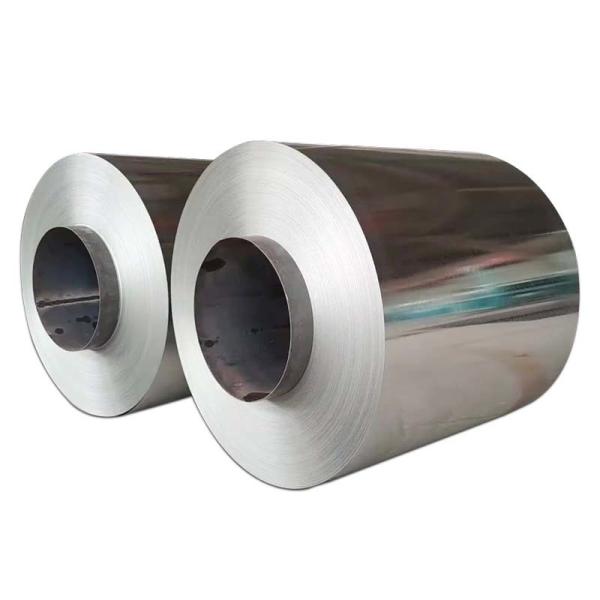

Product Name | Cold Rolled Galvanized Steel Coil For Construction | |||
Width | 850-1250mm or as customer's requirements | |||
Thickness | 0.12mm-1.2mm, 0.12-4.0mm, or as required | |||
Application | roofing, decoration, cutting sheets, commercial use | |||
Zinc coating | 35-275g/m2 | |||
Surface | Light Oil, Unoil,dry, chromate passivated, non-chromate passivated. | |||
Supply Ability | 500000 tons per month | |||
Coil Weight | 3-5 Tons or as customer requirements | |||
Inspection | Fully accept all the third party to test before shipment. | |||
Packing | Industry standard packaging or according to client's requirement | |||
Delivery Time | within 7 working days | |||
Port | Qingdao, Tianjin, Shanghai or as required | |||
Customization Service | Acceptable | |||
Market | Asia, America, Europe, AUE, etc. | |||
Sample | Free |
What is the difference between cold rolled galvanized coil and hot rolled galvanized coil:
1. Cost
Because there is one less process than cold-rolled substrates, the
production cost of galvanizing hot-rolled substrates is lower than
that of cold-rolled substrates, mainly due to annealing costs and
cold-rolled rolling costs, and the other processes are similar.
2. Quality performance
Because the hot-rolled substrate is only pickled and annealed to
remove surface impurities, the surface is relatively rough, the
zinc layer has better adhesion, and the coating thickness is biased
towards 140/140g/m2. However, the thickness dimension is not as
high as cold rolling, and since most of them are thick zinc layers,
the thickness control of zinc layers is not uniform. There is
little difference in mechanical properties, and some properties are
even better than cold rolling.
3. Field of application
Because the dimensional accuracy and surface quality of the
hot-rolled galvanized sheet are not as good as those of the
cold-rolled substrate, and the thickness is thicker than that of
the cold-rolled galvanized sheet, it is often used for structural
components with low surface requirements but high strength and
thickness requirements.
For example, the structural parts of home appliances such as
washing machines and refrigerators, the internal structural parts
of automobiles, the structural parts of automobile chassis,
passenger car bodies, roof panels, highway guardrails, cold-formed
steel, etc.
Because the cost of hot-rolled galvanized sheet is low, and with the progress of technology, the thickness of specifications is getting larger and larger, and the usage is gradually increasing.
Cold Rolled Zero Spangle Galvanized Steel Coil Surface
Cold Rolled Large Zinc Flowered Galvanized Roll With Smooth Surface
Cold Rolled Small Spangle Galvanized Steel Coil
Cold Rolled Different Zinc Spangles Surface Pictures
Fine packaging: internal vellum, transparent plastic, external vellum, iron sheet, steel strip from the inside out. But on both sides of the annular steel plate, coil inner layer of oil paper, outer iron.
Each batch of goods before leaving the factory will carry out strict quality and weight inspection to ensure that the products meet the requirements.
